Product Features

   1. Standard software, no longer need JAVAsupport, set IP settings, acquisition settings, data logging,

       data analysis andother functions, all in one.

   2. Supports both YOKOGAWA GM10 and GP10/20series products.

   3. Wizard-style menu design, support Chineseand English.

   4. GM10 and PC synchronous record control,data double backup, more secure.

   5. Data is processed in real time, and thedata being recorded can be analyzed and processed.

   6. Synchronous acquisition of WT Power Meter Data can be achieved through the GM10’s communication

       channels.

   7. Supports GM10 measurement mode: Normal, High-speedand Dual interval.

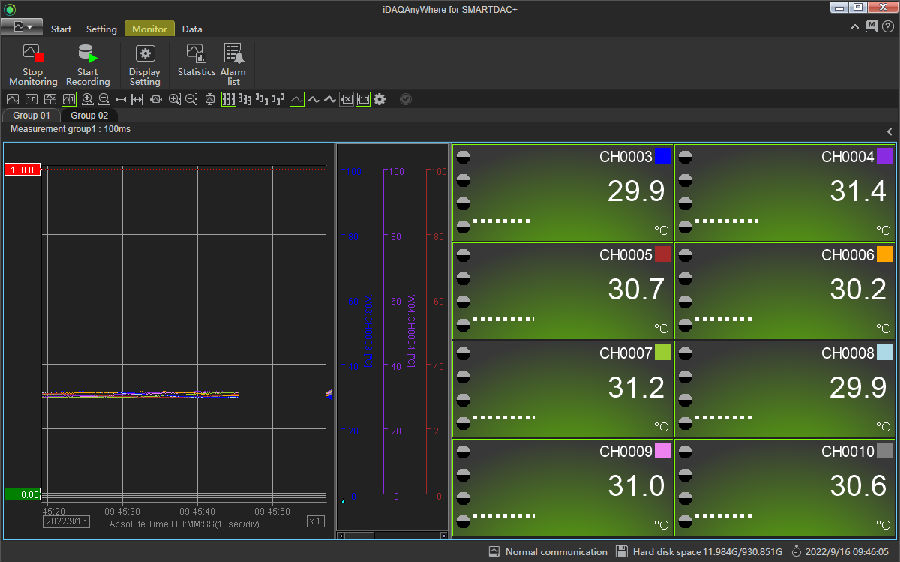

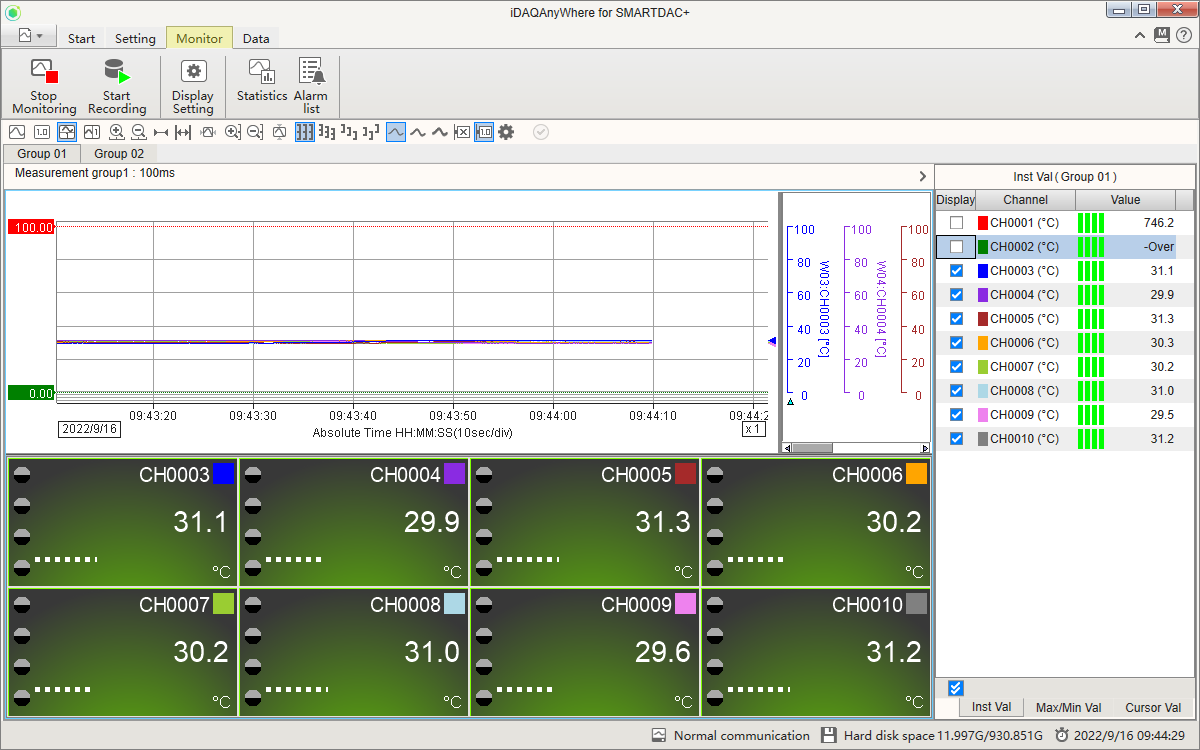

Interface examples

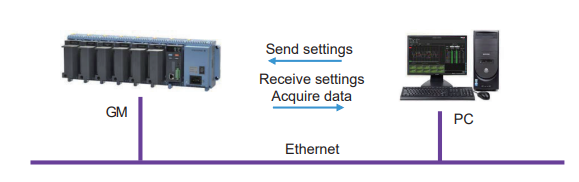

System Configuration

When a computer running iDAQAnyWhere for SMARTDAC+ is connected to GM10

via Ethernet, the user can monitor and record GM10 data in computer and also can

send common settings to the GM10.

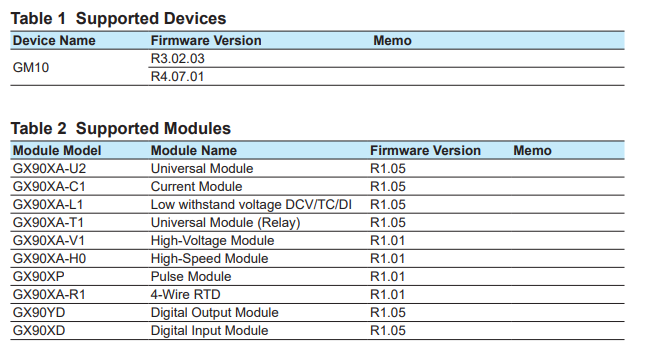

Supported Devices and Modules

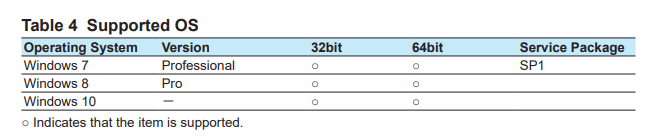

Operation Environment

Software Download

Please go to YOKOGAWA website to download software.

https://tmi.yokogawa.com/cn/library/documents-downloads/software/gm10-r3-02/
